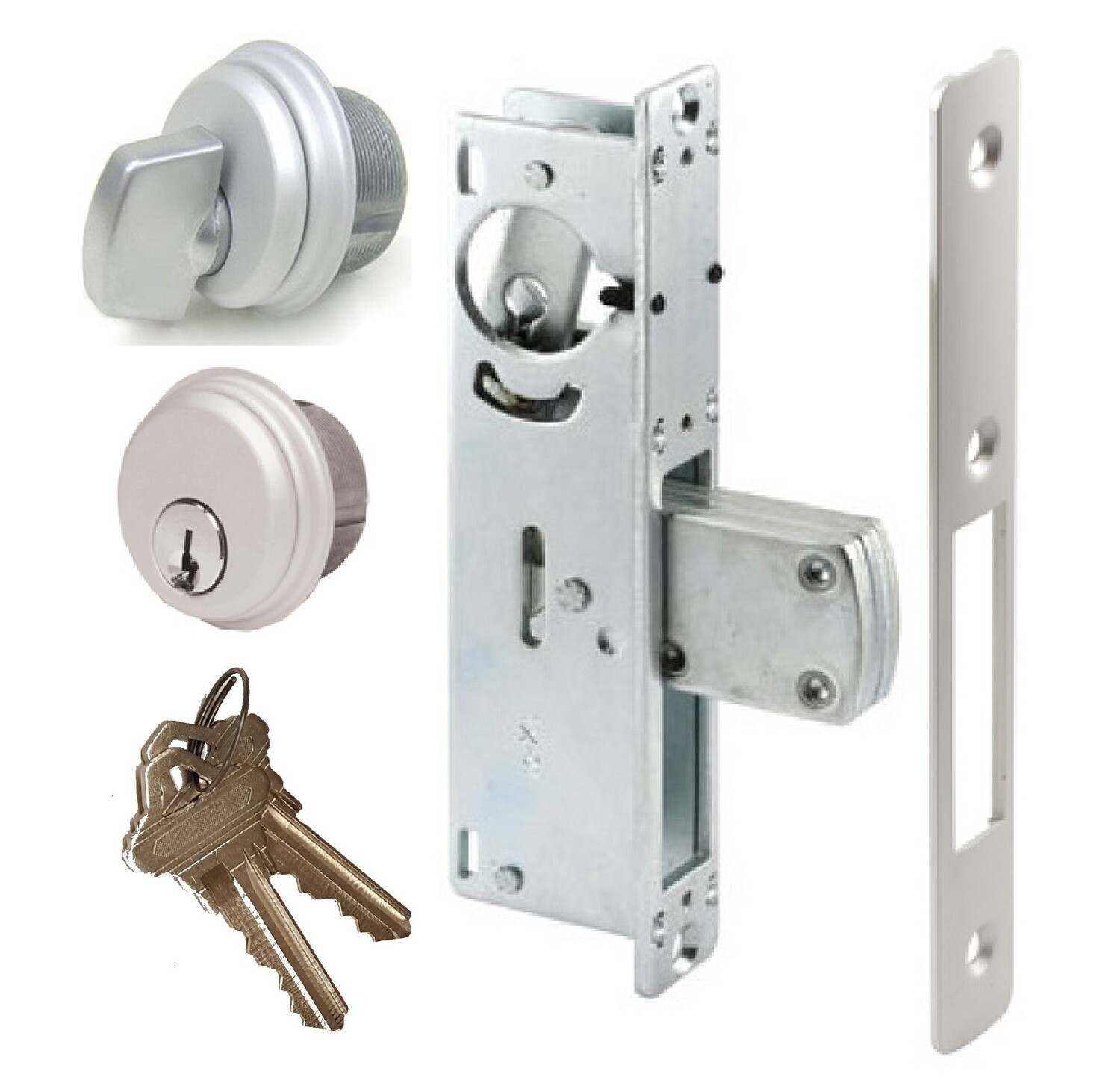

Pacific Doorware Storefront Deadbolt Lock set with Mortise cylinder & Thumbturn for Adams Rite commercial door

• Choose 31/32" or 1-1/8" Backset
• Backset: The distance between the edge of the door and Center of the key cylinder.
• Huge five-ply laminated steel bolt with concealed hardened steel pin provides maximum security. For Adams Rite , Kawneer , & Others
• Includes Deadbolt Lock, Faceplate, 1 Thumbturn, 1 Lock Cylinder & 2 Keys
• Pacific Doorware Brand with Adams Rite Style Cam

Steel or Aluminum Frame Entry Door Mortise Deadbolt Lock Set- Huge five-ply laminated steel bolt with concealed hardened steel pin provides maximum security.

Designed for aluminum or steel framed storefront entry doors.

Specifications: Backset: 31/32", 1-1/8" .

Face Plate: Width - 1", Length - 6-7/8"

Case Dimensions: Width - 1", Length - 6-7/8", Depth (specific to backset) - 1.63" through 1.78"

Includes cylinder set screws, trim, and mounting screws. Note: If your lock cylinder is not threading in, try loosening the lock body mounting screws.
